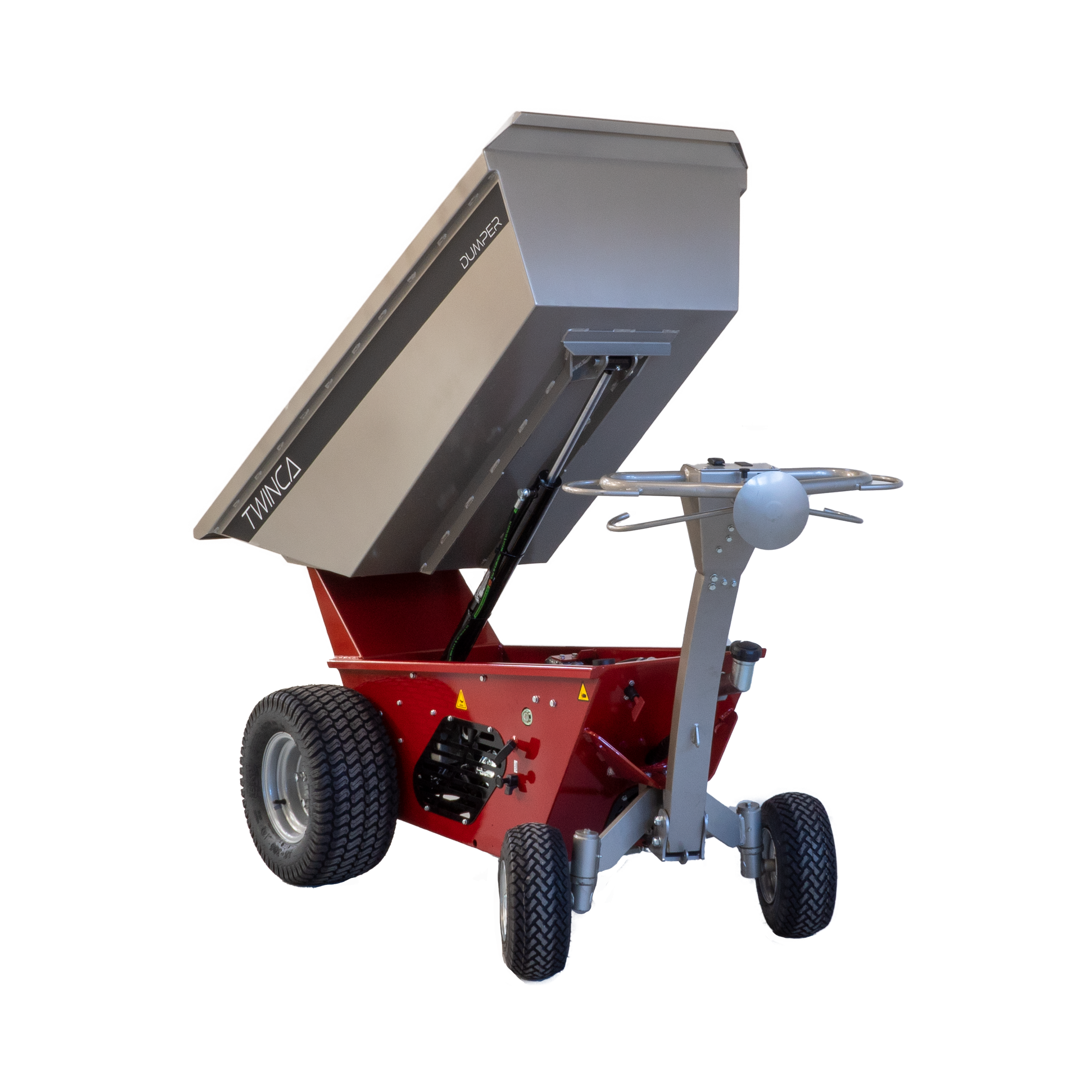

  Twinca Dumper G-800

  • Twinca G-800:
  • The G-800 is Twinca’s further developed edition of the classic minidumper, in which new and innovative technology has been added. 
  • Due to the auto-steering mechanism, the G-800 is easy to maneuver in difficult terrain, and even when carrying a heavy load, the physical manpower required is kept at a minimum.
  • The G-800 is a gasoline driven minidumper with a loading capacity of up to 800 kg.
  • With a height of 1120/920 mm, the E-500 has a very comfortable loading-height. 
  • The skip is equipped with tilt and has an unloading height of 820 mm. 
  • As a part of Twinca’s standard equipment, all of Twinca’s minidumpers have a complete stepless adjustment of speed.
  • In addition, the safety device is pre-mounted to the steering mechanism, which reverses the direction of motion, when activated. In this way, the driver is never in danger of being squeezed between e.g. a wall and the machine. 


Tekniske specifikationer

Model nr.: G-800

Motor:
Motor: Kohler
Model: Command 270
Effekt: 7,0 hp
Fremdrift: Variabel pumpe
Støj niveau: 97 dB
Hastighed: 0 - 6 km/h
Lad: Hydraulisk
Hydraulisk tank: 13,5 liter

Volumen:
Indhold i liter: 400 liter
Indhold i kilo: 800 kg

Vægt: 370 kg

Dimensioner:
Højde: 1070 mm
Længde: 2270 mm
Bredde: 920 mm
Løftehøjde: 1900 mm
Tippunkt: 650 mm

Hjulstørrelse:
Trækhjul 20 x 10-10, 4 ply
Drejehjul 2 x 140-6, 6 ply

Kørselsforhold:
Terræn underlag: 600 kg
Fast underlag: 800 kg

Andet:
Dashboard: LED display
Sikkerhedsanordning: Maskinen vil køre langsomt fremad, hvis føreren bliver klemt






Div. dokumentation vedr. Twinca Dumper G-800

Manualer G-800:

-DK-  -GB-

Produktkatalog G-800:

-DK-    -GB-    -DE-
